Description

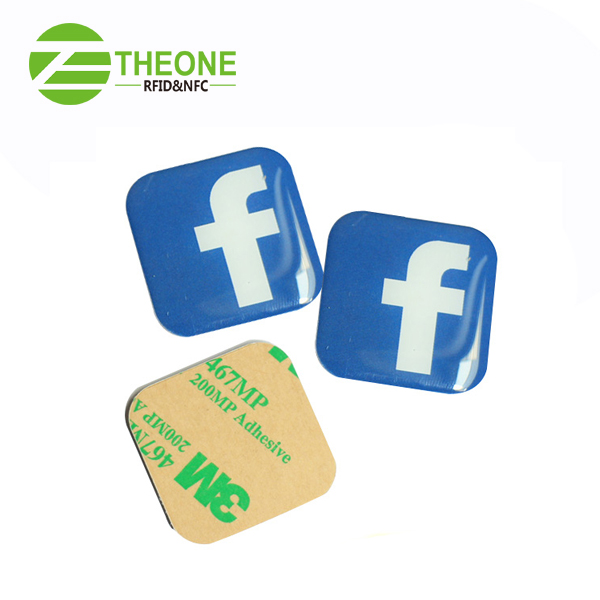

NFC Sticker Format:
Surface Material(coated paper, PVC, PET) + Wet inlay (be made of dry inlay(chip+aluminum antenna)) + 3M adhesive + release paper, on the surface matrerial there is a epoxy coated, will make the tag waterproof and more wear-resistant.
Dry Inlay:
17PF, 21PF, 23PF, 50PF Antenna + Chips (mifare chips or depands on your project), TheOne manufacturer supply you different kinds of antenna size, shape, chips or customized NFC sticker.
Specification:
|
Product Name
|
Blank NFC Tag |
|
Material
|
Coated Paper
PVC PET |
|
Size
|
Dia21mm/ 25mm/ 26mm/ 30mm, 10*10/ 18*18/ 20*20/ 35*35/ 50*50mm
|
|
Protocol
|
ISO 14443A, ISO 15693
|
|
Frequency
|
(HF) 13.56MHz rfid tag
|
|
Chip Available
|
ISO15693 Chip:
ICODE SLI (1Kb) ICODE SLI-X (1Kb) ICODE SLI-S (2Kb) ICODE SLI-L (512b) ISO18000-3M3/ EPC Class-1 chip:
ICODE ILT
ICODE ILT-M
Type 2:
NTAG 213 (144 Bytes) NTAG 215 (504 Bytes) NTAG 216 (888 Bytes)MIFARE Ultralight® EV1(48 Bytes) MIFARE Ultralight® C (148 Bytes) (MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license) Type 4:
MIFARE® DESFire® EV1 2K MIFARE® DESFire® EV1 4K MIFARE® DESFire® EV1 8K (MIFARE DESFire are registered trademarks of NXP B.V. and are used underlicense)MIFARE Classic® (1K Bytes, 4K Bytes) (MIFARE and MIFARE Classic are trademarks of NXP B.V. and are used under license)MIFARE Plus® (1K,2K,4K) ( MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license ) |
|
Crafts Available
|
3M adhesive back side
CMYK Offset printing, Silk printing Encoding with your data including URL, Website etc Serial Number including UID, Laser number QR code Anti-metal Material Rfid tag Customized Craft Rfid tag |
|
Application
|
payment, identification, logistics management, apparel management, library book management, wines management and the application of bags, trays and luggage,etc
|
