Description
RFID cards that is made of white PVC at the size of a credit card or die cut sizes smaller than 460x305mm and bigger than 13mm. The RFID chip is embedded inside. RFID cards, ideal for any application needing wireless communication over short distances.
RFID cards are proving popular in many industry sectors including Public Transportation, particularly for ticketing.
Furthermore, marketing agencies are utilising the technology for use in advertising and rewards, typically for loyalty card schemes and coupon redemption.
Physical Parameter:
Material: PVC, ABS, PET
Chips Available:
- LF: (125KHZ): TK4100, EM4200, EM4305, EM4450, EM4469, T5577, etc.
- HF: (13.56MHz)：MIFARE Classic® 1K , MIFARE Classic ® 4K , MIFARE® DESFire ® EV1 (2K/4K/8K) , MIFAREPlus® (2K/4K) , MIFARE Ultralight ® , MIFARE Ultralight ® EV1, MIFARE Ultralight® C , NTAG 213/ NTAG 215 / NTAG 216 , FM11RF08 , ICODE SLI/-L/-X/-S etc.
- UHF:（860MHz-960MHz)：NXP Ucode series , AlienH3, Impinj M4/M5 etc.
Working Temperature: -20—50℃
Reading Range: 2CM-5CM ( LF), 2CM-10CM ( HF), 1M-10M ( UHF）(related to the reader and reading environment.)
Read/write operation: 100,000 times.
Working Life: 10 years.
Surface Available：
Crafts：Laser code, bar code, and high/low magnetic stripe resistance, convex code, gold/silver, gold/silver printing, scratch, UV oil, portrait etc.
Printing: White card (print), gold/silver background, or screen printing and offset printing (according to customer’s requirement).
Card size: 56*28mm, 25*40mm, 30*45mm or customized, thickness can also be customized.
Application:
E-ticket system,payment management, hotel door locks, access control system, express highway Toll Collection,parking system,Identity Management, payment system, bus smart card,metro ticket.

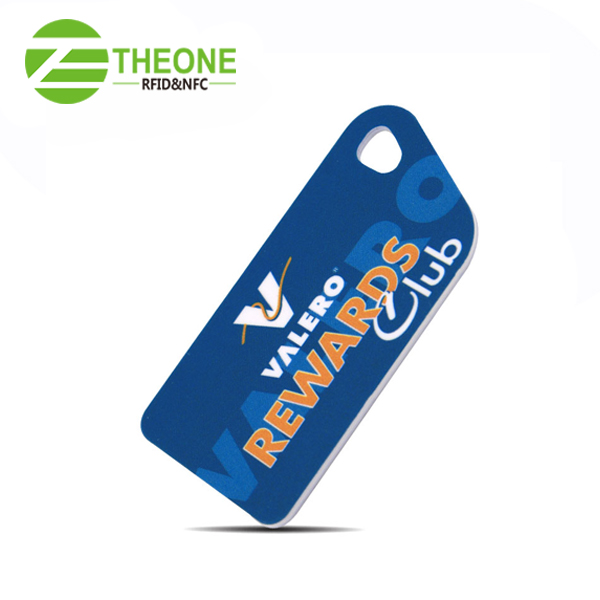

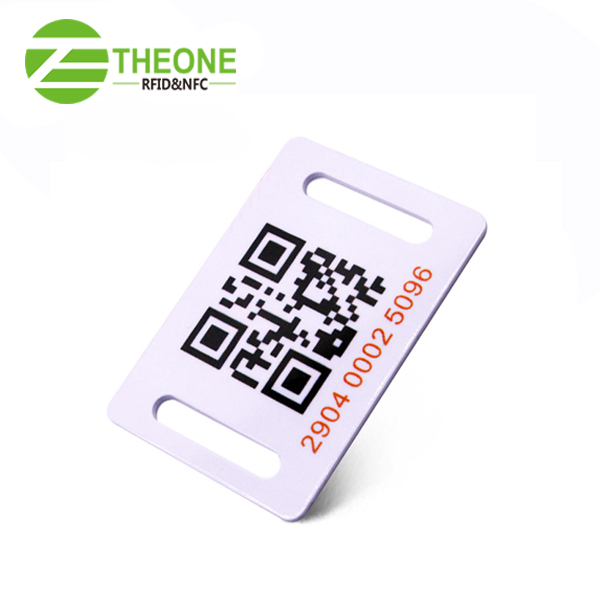

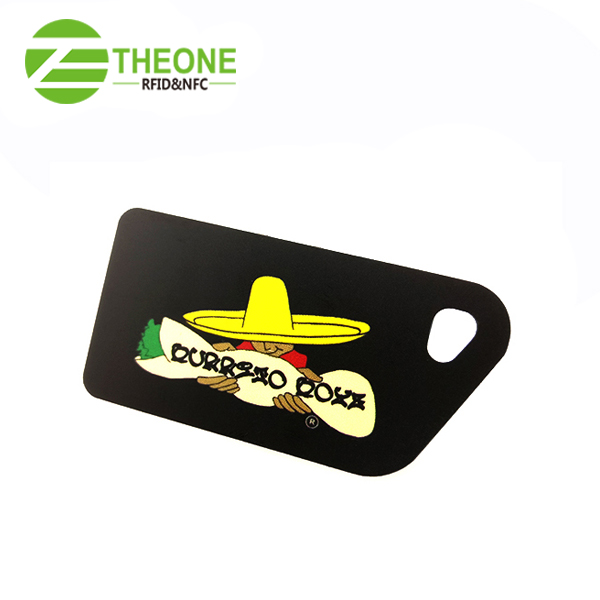

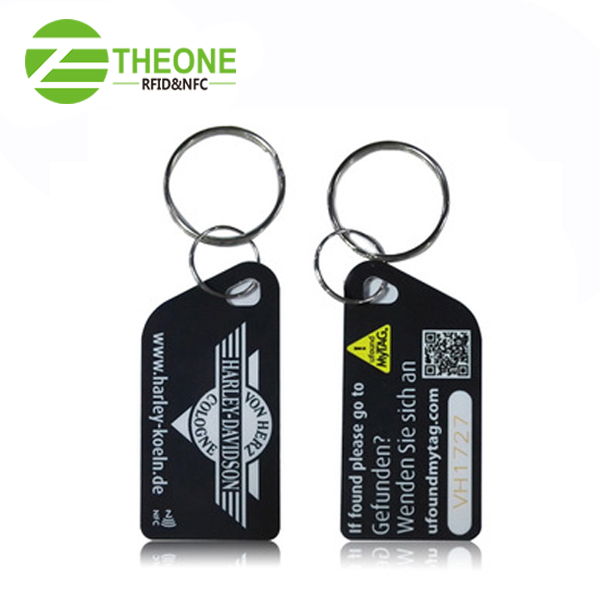

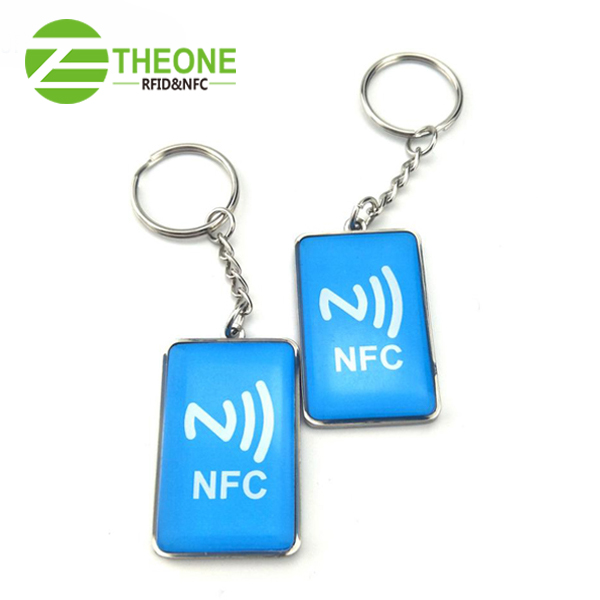

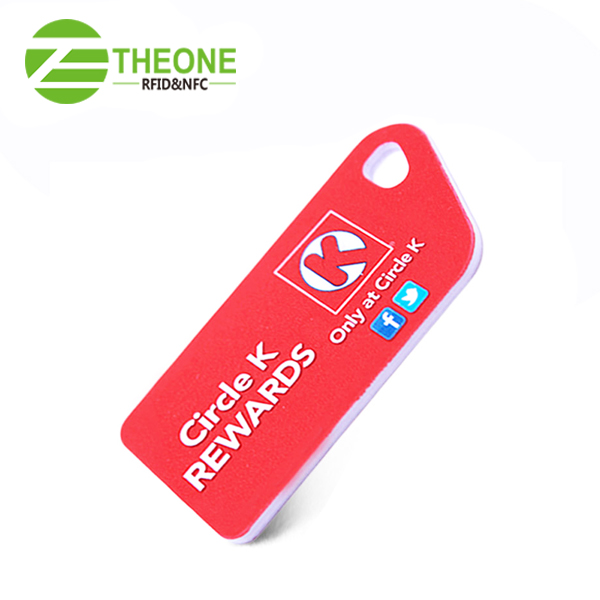

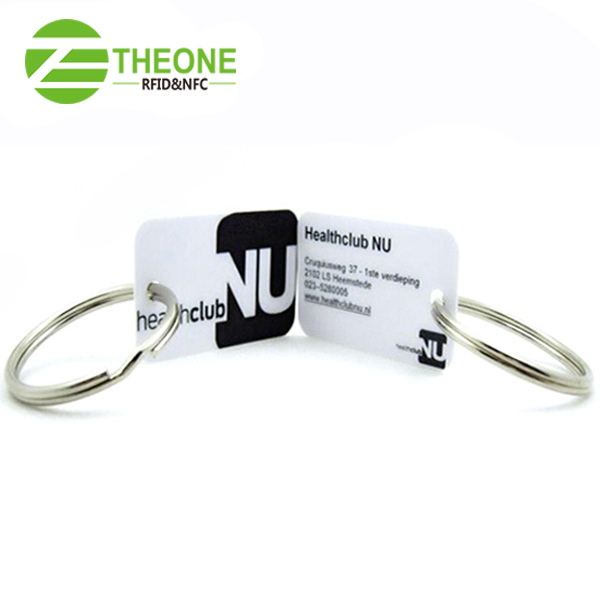

More Pictures:
